TDC Shop 07k Mafless management swap file

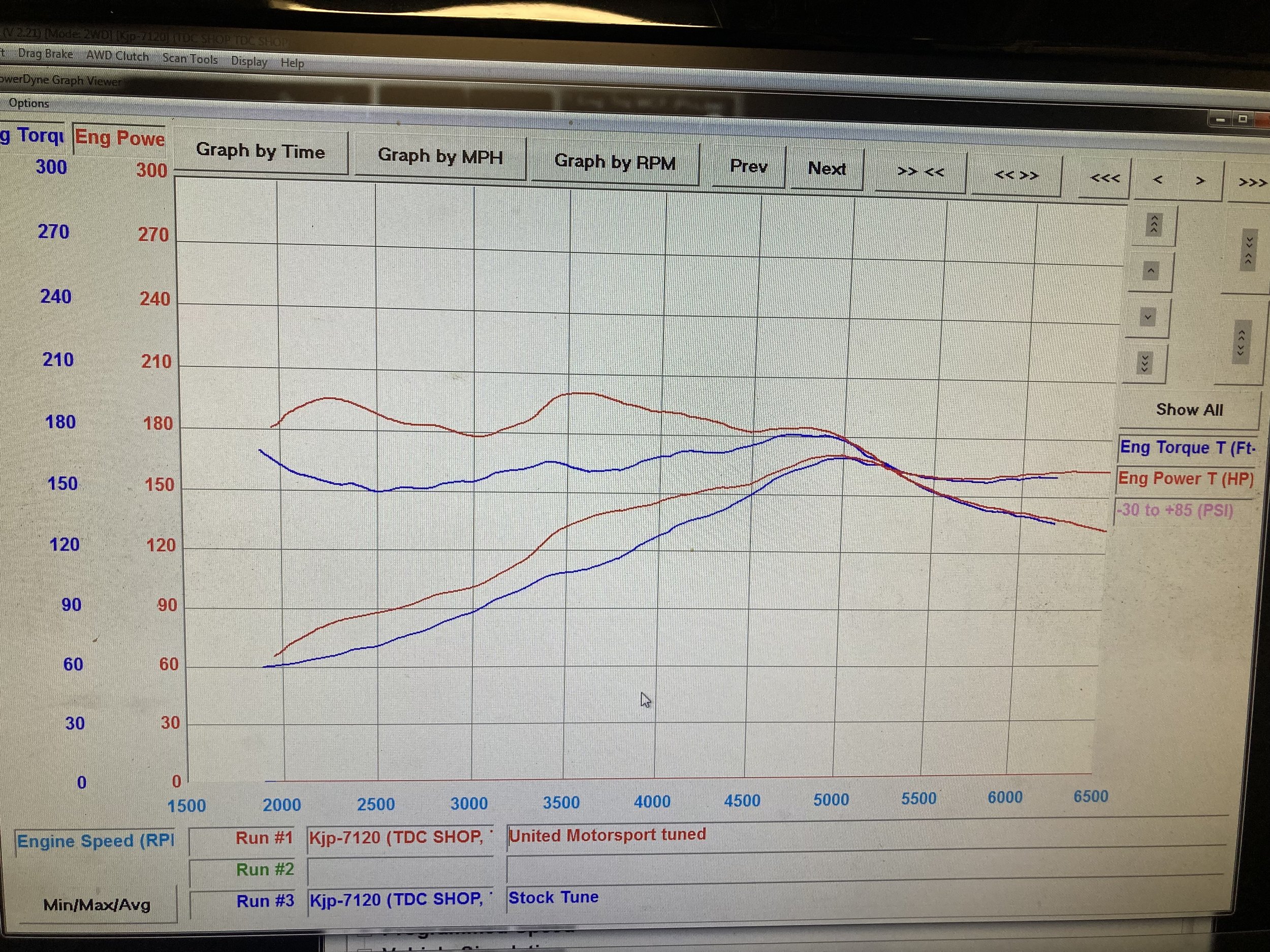

Working with United Motorsport TDC Shop is proud to introduce a true swap file for the 07k motor platform utilizing the oem maf-less management from 2009 07k ecu motors. Utilizing a specified stock ecu TDC Shop can offer a true swap file that allows for proper calibration outside the oem mk5/mk6 chassis. This takes care of the missing VSS signal normally required and all the missing module and component no longer present when swapped into an older chassis vehicle. This management is applicable to all 07k motors from 2005 -2008 & later 2009-2016 07k. The 07K motors were found in Jetta’s, Rabbits, Passat’s, and Beetles from 2005-2014. Tuning is applicable for manual transmission application only. The oem bottom hung mk5/mk6 gas pedal is retained. The fuel system requires a basic high pressure fuel injection pump with a proper 4 bar fuel pressure regulated filter installed properly (part number 6Q0 201 051 C, application is typical to most all 07k equipped cars). With the flash file developed using a 2009 07k motor, stock intake manifold, short ram intake pipe and stock exhaust manifold with 2.25inch cat back exhaust the file produced 172hp & 202ft/lb AT the wheels making it a very fun swap in many chassis’.

The cost of the swap file is $650 and available via TDC Shop.

ECU part number 07K 906 055 N,M,P, or Q must be used for this file, no other ecu is valid for file.

ECU is native to most 2009-2010 o7k cars. ECU MUST have one of above 4 listed ecu box code

If using a short runner intake manifold +$300 applies (see UM website for specs)

If requesting a boost file file (uses 550cc injectors) +$600 applies (see UM website for specs)
